Exchange 2016 Updates: Don’t forget to activate the components!

I’ve done a number of Exchange and Skype for Business server deployments over the last year, and recently I moved to Exchange 2016 versus 2013 just to get the deployments up and running on the latest. However, after performing my upgrade to Exchange 2016 (per these instructions), my EWS connections between Skype for Business and Exchange were not working correctly. Of course, Exchange isn’t fully running for anyone, I’m still testing things out, so not a big deal, but still. What the hell is going on?

In S4B, when I run Test-CSExStorageConnectivity, I’m getting “Test-CsExStorageConnectivity : ExCreateItem exchange operation failed, code=50043”.

testcsexstorageconnectivityerror

The standard response, and search result in Google, for a 50043 error is to check and make sure that your “ExchangeAutodiscoverUrl” property after running Get-CSOAuthConfiguration is configured for the Exchange server’s autodiscover metadata json URL (“https://<exchangeAutodiscover>/autodiscover/metadata/json/1”). But what happens if you’ve already checked that? The URL is correct and you’re good to go, so what changed?

Wait, didn’t I say I upgraded to the latest Exchange 2016 CU (CU3)? Did I completely follow the instructions?

Hmm..let’s check the Exchange server components (something new, AFAIK, to Exchange 2016):

Well. Guess I didn’t the follow instructions at the end that states you to have run the following:

followtheinstructions

I’m going to start tagging moments like this as ‘ya dummy’ moments.

Now, let’s check the component status:

get-servercomponentsactive

And then running Test-CSExStorageConnectivty works, and all is well.

So I guess one thing to look at if you’re getting a 50043 error and your have the Metadata URL correct is to verify that EWS is running on your Exchange box.

Skype for Business/Lync Server and Exchange UM: Errors with Event IDs 1079 & 1136

During a recent Skype for Business-Exchange 2013 deployment, I tried running all calls to a DID, then to an Exchange 2013 UM Auto Attendant. After some hiccups I had it working, but painfully, dialing by extension and transfers did not work from the Auto Attendant. After doing some investigating, the Skype server wasn’t giving me an errors, and my syslog from the Audiocodes gateway was indicating calls were transferring.

However, the Exchange server gave me two errors regarding unified messaging: 1079 and 1136.

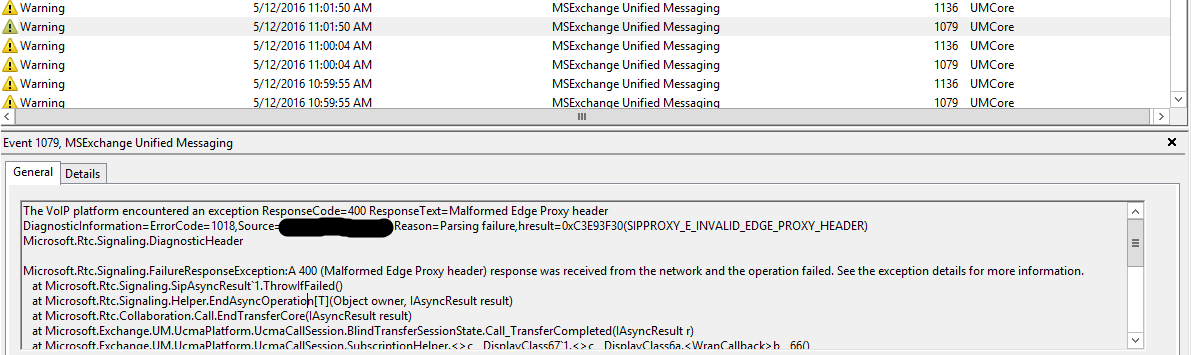

1079:

exUMError1079

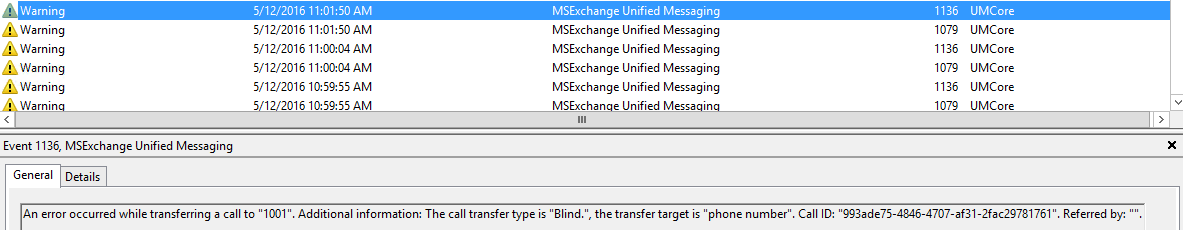

1136:

exUMError1136

I tried lots of solutions, tested my environment numerous times, but nothing was working. If you look these errors up when doing a Skype for Business server deployment, you’ll often see Microsoft KB 3069206 come titled, “Exchange UM Auto Attendant cannot transfer calls to a phone or extension number in Skype for Business Server 2015“. Looks great and promising…

…but I’ve already updated the server to the latest CU.

With more Google-fu, I found my solution: I needed to change my certificate for the Exchange server.

According to this TechNet thread, the certificate assigned to the UM services on the Exchange server needs to have it’s subject name be the same as the Exchange UM server’s name. I had used the same UCC-SAN cert for UM services that I set up for the Skype for Business Edge server, and added all the subject alternative names needed.

The fix: perform a new certificate request from the internal CA, apply the certificate to the UM services, then restart the UM services on the Exchange server..

After that, call transfers worked!

Hope this helps someone.



Skype for Business: “Prerequisite installation failed: MSSpeech_TTS_pt-BR_Heloisa”

While doing a Skype for Business deployment, I encountered this strange error that was preventing the S4B server components from installing: “Prerequisite installation failed: MSSpeech_TTS_pt-BR_Heloisa”.

The log file showed the following:

languageErrors

After doing some Googling, the consensus was to find the MSI file and replace it.

The file was located here: C:\ProgramData\Microsoft\Skype for Business Server\Deployment\cache\6.0.9319.0\setup\speech\pt-BR\

However, the question was where to get the speech files. I tried getting them from the ISO, but it appeared the files on the ISO were corrupted, so I had to get the files here:

Microsoft Speech Platform – Server Runtime Languages (Version 10.1)

I ended downloading what I needed, but subsequent MSI files were also having problems, so I ended up just replacing MSIs in the the directories “pt-BR” through “zh-TW” just to be safe.

The installation then continued successfully as expected.

Hope this helps someone.

Update (06/07/16): Had this problem again (forgot to replace ISO), and I found out that if you keep the S4B ISO mounted or DVD in the system, then S4B will re-download the bad packages from the ISO/DVD. Dismount or eject the media, then copy the MSI files.

Update 2 (09/20/16): You can also just re-download the ISO. Problem solved. 😀
